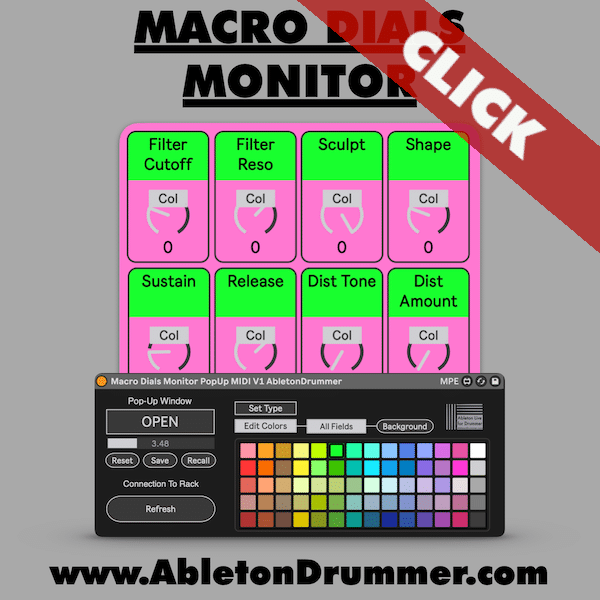

Ableton Live packs a lot of control into rack macros, but the dials themselves stay tiny. When you perform live or juggle dozens of tracks, you can easily lose track of whether an effect is on, off, or somewhere in between. That’s why I built Macro Dials Monitor, a Max for Live device that lets you display macro dials big in a resizable pop-up window. In this guide, you’ll learn how to set it up, customize colors and display types, and move your macros onto a second screen.
Why Display-Macro-Dials-Big in Ableton Live?
Rack macros let you control several parameters with one dial. However, Live shows those dials at a small, fixed size inside the Device View. Moreover, you only see them when you select the track that holds the rack. As a result, checking a single value often means clicking through tracks in the middle of a set.
Macro Dials Monitor solves this by mirroring your macros in a separate pop-up window. For example, you might run a mastering chain on your Main track and control it from a MIDI controller. Instead of jumping to the Main track every time, you simply glance at the pop-up window. Similarly, on stage you can place the window on a second monitor and see your most important parameters at all times.
Choose the Right Version: Audio or MIDI
Macro Dials Monitor comes in two versions, and the rack type decides which one you need:
- Audio version: Use it in audio effect racks and instrument racks. Inside an instrument rack, place it after the instrument.
- MIDI version: Use it in MIDI effect racks. Inside an instrument rack, place it before the instrument.
How to Display-Macro-Dials-Big: Setup in Three Steps
Setting up Macro Dials Monitor takes only a few seconds:

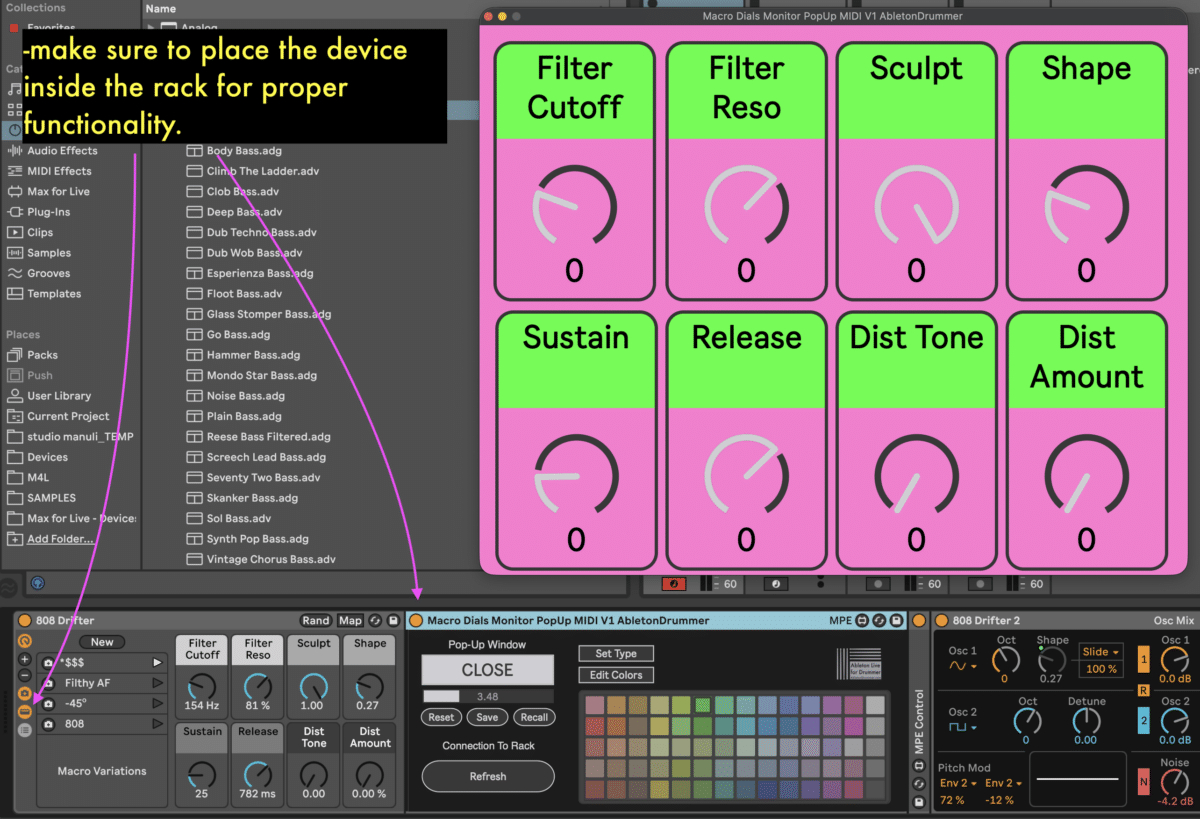

- Drag and drop Macro Dials Monitor into your rack. The device connects to that rack automatically. You can “Refresh” its connection e.g. if copy and pasted from a different position.
- Click Open. The pop-up window appears and shows every visible macro of the rack.
- Adjust the Zoom value to scale the window. If a parameter really matters on stage, you can make the window huge.
Furthermore, the window follows every change you make to the rack. When you add or delete macros, or change how many macros the rack shows, the pop-up window updates right away.
Save and Recall the Window Position
Once you find the right size and spot, click Save. Macro Dials Monitor then stores the size and position in your Live Set. Next time you open the set, the window returns to exactly that place.
However, Ableton Live sometimes recalls pop-up windows on a second screen inaccurately. If that happens, simply click Recall once, and the window jumps back to its former saved position.
Customize Colors to Display-Macro-Dials-Big on Stage
Colors help you spot the right macro instantly, especially during a busy performance. To change them, click Edit Colors, select a or multiple macro field by activating the “C” button and pick a color. Alternatively, choose All Fields to recolor every field at once.
Keep one detail in mind: activate the color button for a field, then deactivate it before you move on. That way, you change only one field at a time.
In addition, the Background option lets you set the window’s background color. On macOS, you can also adjust the window’s opacity. This option may work on some Windows systems, but not on all of them, so I only guarantee it for macOS.
Save Your Settings as a Preset
After you finish, drag Macro Dials Monitor into your User Library to save its color and display settings. Later, drag that preset into any rack of the same type, and all your colors and settings come along with it.
Pick a Display Type: Dial, Button, or Fader
Dials don’t suit every parameter. For this reason, Macro Dials Monitor offers three display types. Click Set Type, and each field shows a letter: D for dial, B for button, and F for fader. Click a letter to switch types, then leave the Set Type menu.
Button: Imagine a macro that toggles an Ableton Live parameter between on and off state. A dial moves between those two states but is visually not as obvious as an off/on button. A button, by contrast, shows on and off at a glance.
Fader: Sometimes you need to know whether a value sits at roughly 30% or 50%. Small dials and plain numbers make that hard to read quickly. A fader, on the other hand, gives you a clear visual sense of where you are.
Dial: For everything else, simply keep the default dial.
Fine-Tune the Button Breakpoint
When you set a field to button, a Breakpoint value appears. The breakpoint defines where the button switches from off to on. By default, it sits at 64, the middle of the 0–127 range.
You can, however, lower it. For instance, with a breakpoint of 20, a parameter with 16 steps already lights up at a value of 3. This comes in handy when one macro controls several parameters and you want the button to show “on” at a lower value. As always, Macro Dials Monitor stores this setting with your preset.
Display-Macro-Dials-Big for Live Performance and Production
Beyond simple monitoring, you can automate the pop-up window itself. In Arrangement View, write automation to open it; in Session View, use clip envelopes. Consequently, song X can show parameter Y exactly when you need it.
Likewise, you can run several Macro Dials Monitor windows at once, spread them across one or two screens, and toggle them on and off as your set progresses. Whether you perform live or produce in the studio, you finally get a clear view of what your macros actually do.
